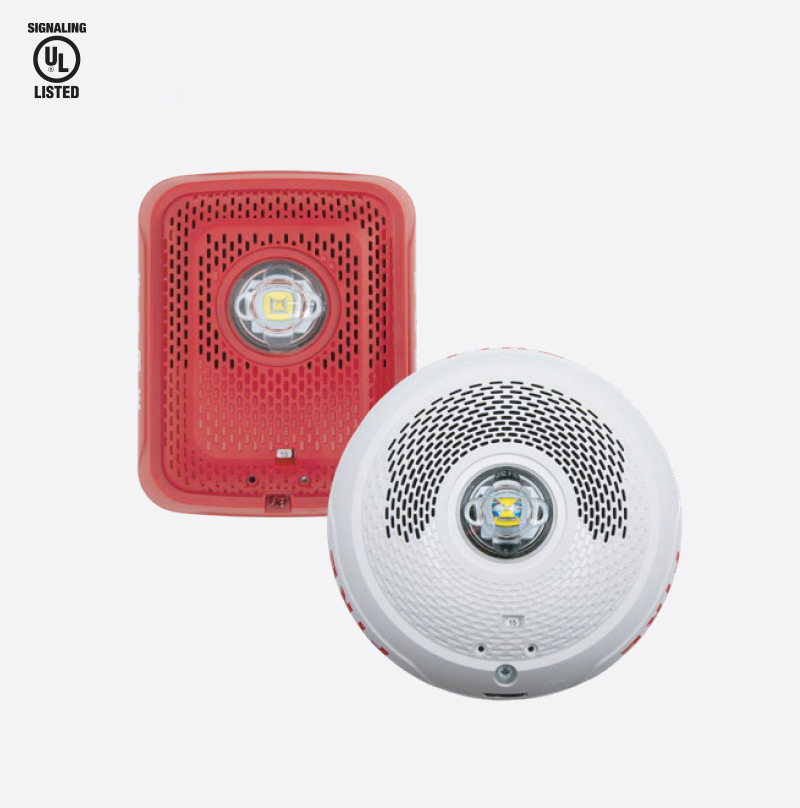

Speakers and LED Speaker Strobes

TRIGA LED platform offers the most versatile and easy-to-use line of speakers and speaker strobes in the industry with lower current draw and modern aesthetics. LED lighting technology offers significantly lower current draw compared to older Xenon bulbs across a full candela range. This improves design flexibility for notification appliance circuits (NACs) while also reducing power supply requirements allowing for simpler and lower cost installations.
Flexible design options meet virtually any application requirement: wall or ceiling mount, red or white color choices, bezel kits for alternate markings and languages, and LED color lenses for distinctive visual signaling. In addition, installers can easily adapt devices using field selectable candela, using rotary switches.
The low harmonic distortion of the speaker offers high fidelity sound output while offering high volume sound output for use in high ambient noise applications.

Categories:Notification Devices, Speakers

Features
Resources

Features

• LED technology provides lower current draw
• LED technology provides lower current draw
• Digital Volt Meter (DVM) diagnostic test points for Speaker Strobes
• Common aesthetics across the L-Series platform
• Tamper-resistant construction
• Field-selectable candela settings on wall units: 15, 30, 75, 95, 110, 135, and 185
• Field-selectable candela settings on ceiling units: 15, 30, 75, 95, 115, 150, and 177
• Rotary switches for candela, speaker voltage (25 and 70.7 Vrms) and power settings (1⁄4, 1⁄2, 1, and 2 watts)
• Mounting plate provides plug-in design for easier installation and shorting springs to check wiring continuity
• Electrically compatible with legacy SpectrAlert, SpectrAlert Advance and L-series devices at 16-33 VDC
• Synchronization through use of UL approved power supplies that support System Sensor Sync protocol or System Sensor MDL Sync Module
• Speakers and Speaker strobes listed for wall or ceiling use
• No extension ring required
• Speakers offer high fidelity and high volume sound output
• 520 Hz capable with compatible Fire alarm control panel (FACP)
