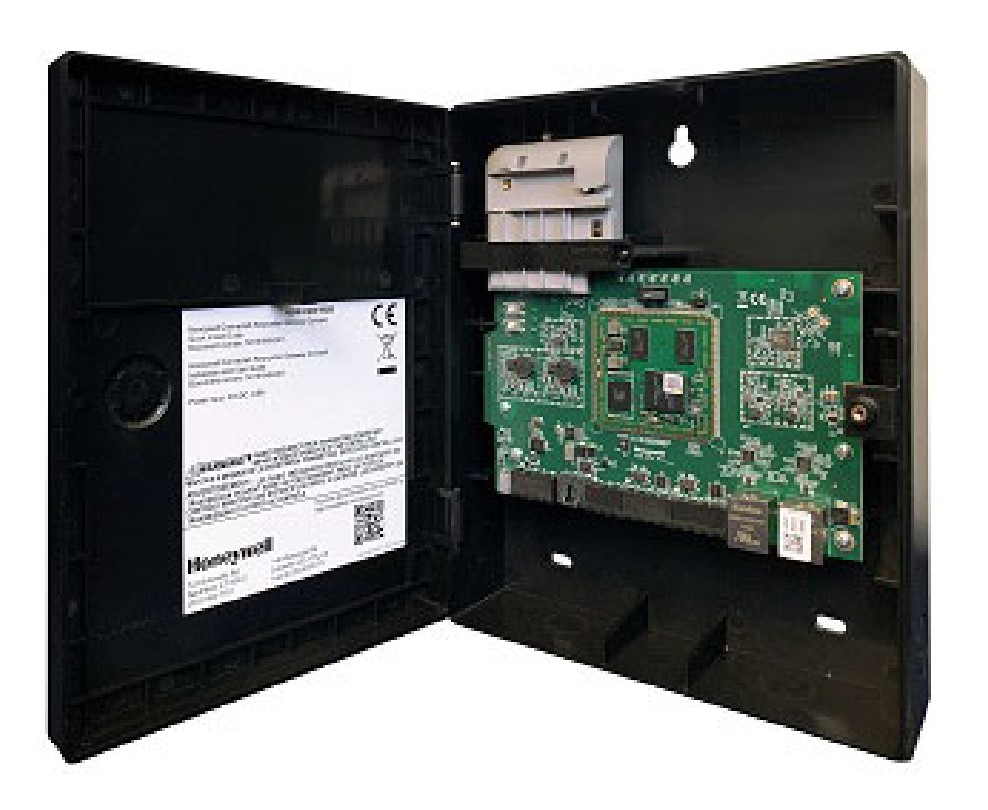

CLSS Gateway

The CLSS Gateway, offered by Honeywell Fire, serves as a critical interface linking Honeywell fire system panels or networks with the Cloud, central stations, and peripheral devices. This gateway facilitates the seamless transmission of system inventory data from panels to the CLSS Cloud, enhancing operational efficiency. Designed to connect with a range of devices and supported by various agency listings and approvals, the CLSS Gateway integrates with the CLSS CheckPoint mobile application for easy configuration and control. Its versatility in connectivity options, both wireless and wired, makes it adaptable for different application scenarios, ensuring reliable fire alarm communication and data management.

Category:

Description

FEATURES AND BENEFITS

  • Connects directly to compatible Honeywell fire alarm control panels (FACPs) or panel networks
  • Provides seamless integration with the CLSS Checkpoint mobile application
  • Bluetooth® mobile pairing for Gateway Configuration and Control capability on Android ™ and iOS® devices
  • Wireless or Wired Connection from the Gateway to the CLSS Cloud
  • Panel connection options include Standalone Panel, Networked Panel, and Standalone with Digital Voice Control
  • Can be used for portable or permanently installed applications
  • Serves as a Fire Alarm Communicator to central station when used with optional cellular module and feature activation
  • Collects system data from the connected FACP and sends it to the CLSS Cloud enabling productivity and efficiency tools and features





TECHNICAL SPECIFICATION

POWER

  • Nominal Voltage Range: Consumes 12 to 32 VDC from the fire alarm control panel (FACP) or from an external power source.
  • Current: The power requirement varies with the number of interfaces used.
  • Typical Current Consumption: 0.1A at 24 VDC (with wireless connection)
  • Peak Load: 0.25A at 24 VDC

ENVIRONMENT

  • Temperature: 14°F to 140°F (-10°C to 60°C)
  • Relative Humidity: 1% – 94% (noncondensing)

PHYSICAL

  • Enclosure Dimensions: 10.25″ L x 8″ x 3.75″(260.03mm L x 203.2mm W x 95.25mm D)
  • Weight: 1.6 lb (0.73 kg)

WIRELESS TRANSMITTER

  • VBAT: 3.6V
  • Ambient Temperature: 77°F (25° C)
  • Output power: @module RF antenna port
  • Target power: Meets Spectrum Mask and EVM compliance
